Wireless Timing System

Wireless Timing System BTC (Test Center)

Description
The wireless BTC Timing System was specially designed for Track&Field applications. It is of course suitable for any speed and performance related sports (Soccer, Team Handball, Tennis, Squash, Field Hockey etc.) and used for practice, talent scouting events, athlete rehab etc.

The system enables coaches and athletes to perform highly accurate measurements of time, speed and repetitions including the input of test data and storage of all results directly from the BTC Timer Memory.
With an operating range of 300m and an accuracy of 1/1000 s the BTC System is a highly precise measuring unit. The system operates with 5 selectable radio frequencies enabling the use of multiple units in one location without any cross interferance.
The compact design guarantees perfect portabilty.

Scope of Delivery

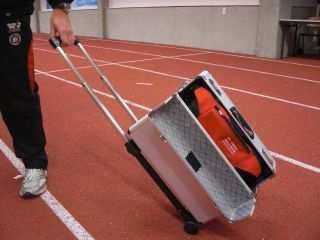

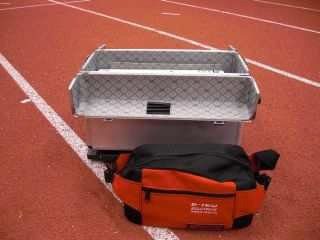

The basic system consists of a photo-gate set, a standard tripod, the new Motion Start sensor and the actual Timer with its built in display (optionally available with UBS for data transfer) and is delivered in a small lumber bag. The system may be extended with up to 8 additional photo gates.

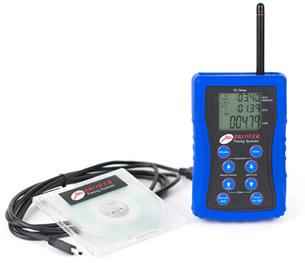

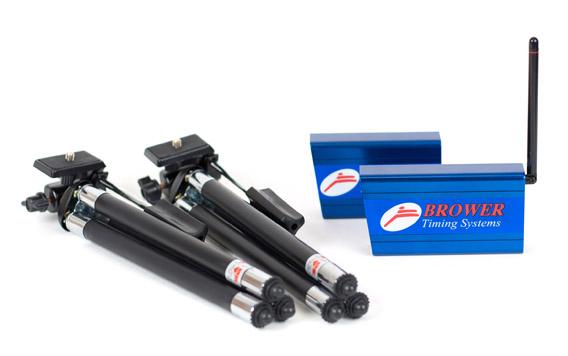

Photo Gate Set with tripod	BTC Timer (USB version (optional) as displayed)

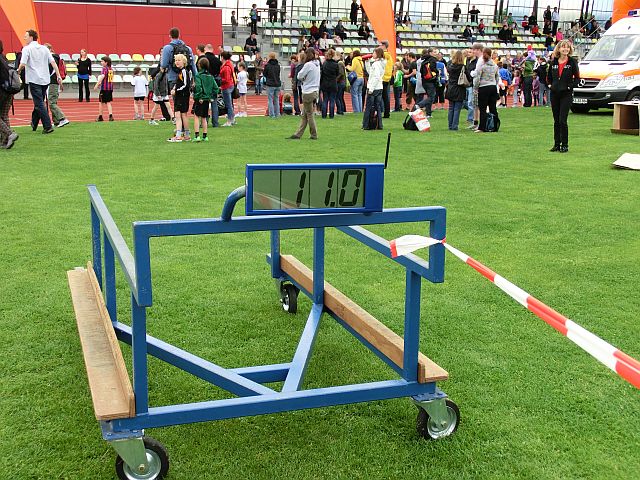

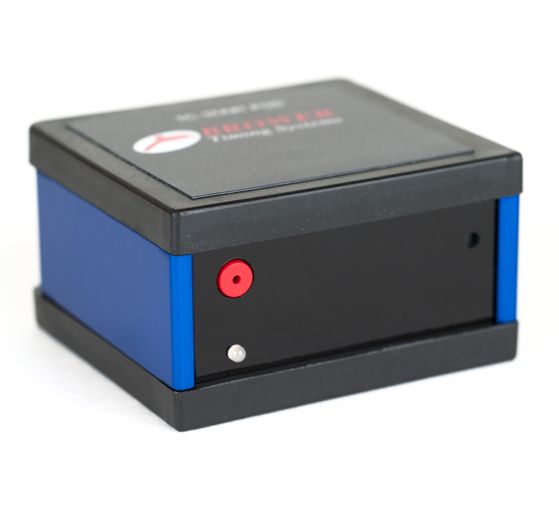

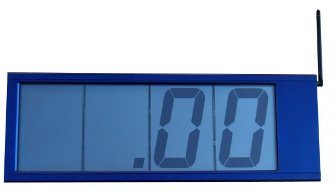

BTC Motion-Start	LCD Display (Option)

Start variants
The BTC System offers 3 different start variants:

Start on Motion: > Start after detection of a movement
Start on Detection: > Start after detection of an object
Ready-Set-Go: > Simulates a classic start command

System features

fully automatic, wireless
fast and easy set-up
suitable for all running distances
light weight and portable
extra photo gates possible (option) enabling the measurment of up to 8 split interval times
5 adjustable radio frequencies enabling the use of multiple units in one area
numerical display with 3 lines
accuracy of 1/1000 sec
km / h mode
extended battery life of all components
extended result storing and reading features
Athlete number assignment: allowing for times and test values to be identified and saved to a specific athlete
Test number assignment: this up to 8 customized tests to be performed and matched to a specific athlete
the BTC-Timer USB captures the athlete number, test number and times and saves the information in its memory; all the data can then be re-called. To download this data to a PC the BTC Timer USB is required. The appropriate software takes the data and inserts it into the BTC Result Center on your screen.

System variants

Standard BTC System (1 wireless photo gate set with tripod, BTC Motion-Start and BTC Timer, in carrying bag)
Standard BTC System as USB Variant (1 wireless photo gate set with tripod, BTC Motion-Start and BTC Timer USB, in carrying bag)
